TZA-1500®DP

MIXER AMPLIFIERS

2 ZONE PA MIXER AMPLIFIERS

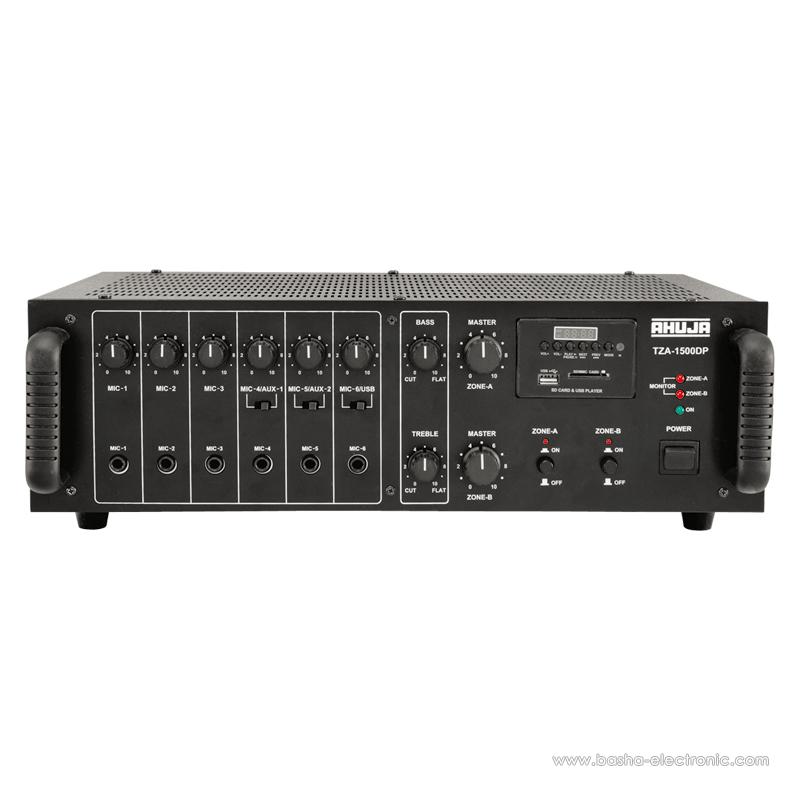

TZA-1500®DP

160 WATTS WITH BUILT-IN DIGITAL PLAYER

2 ZONE PA MIXER AMPLIFIER

  • 6 Mic, 2 Aux Inputs.
  • Built-in MP3 player with remote control for USB, SD/MMC card reader.
  • Preamplifier and Line Output for connecting to a Booster Amplifier and for recording the programme.
  • TZA-1500DP is ideal for medium sized installations such as in places of worship where two separate groups of speakers are needed to be connected.
  • User has a choice to connect both the zones to 100V (LMT) type speakers, or 100V speakers to one zone and low impedance type speakers to the other zone. Both the zones can also be connected to low impedance type speakers.
  • Instant transfer to DC power (Car Battery) if AC power fails.
The Manufacture Company : AHUJA
Country of Origin : INDIA



  • Specifications
  • Downloads

Power Output

100W + 100W Max., 80W + 80W RMS at 10% THD, 70W + 70W RMS at 5% THD, 60W + 60W RMS at 2% THD

Output Regulation

≤ 2 dB, no load to full load at 1kHz

Input Channels

6 × Mic 0.6mV/4.7kΩ, 2 × Aux 100mV/470kΩ

Frequency Response

65-15,000Hz ±3dB

Signal to Noise Ratio

60dB

Tone Controls

Bass: -10dB at 100Hz, Treble: -10dB at 10kHz

Output

Preamp 200mV/600Ω, Line 1V/1kΩ

Speaker Output

4Ω, 8Ω, 70V & 100V

Digital Player

MP3 Player with USB, SD and MMC Card Reader

Power Supply

AC: 220-240V 50/60Hz DC: 12V (12V Car Battery)

Power Consumption

AC: 300VA DC: 6A

Dimensions

W460 × H155 × D310 mm

Weight

14.5kg



Operation Manual | 2018-07-19
