WSL-2500R

PORTABLE PA

PA LECTERN SYSTEM

WSL-2500R

40 WATTS

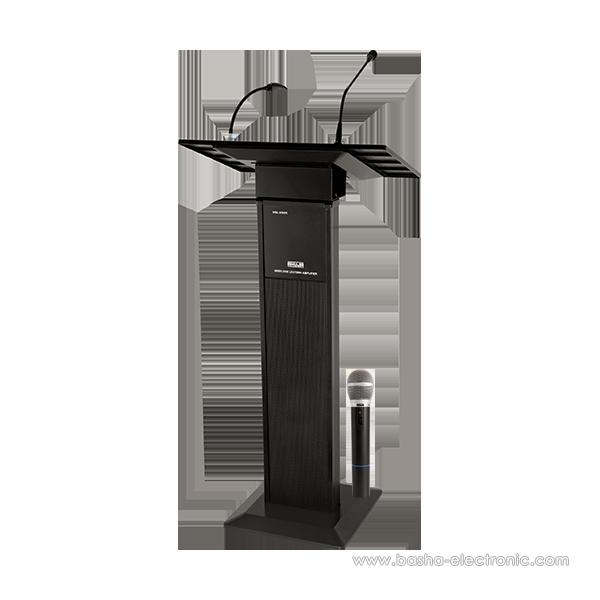

PA Lectern System

  • Compact, versatile and easy-to-assemble wireless Lectern Amplifier with built in 40W amplifier.
  • Contains a built-in speaker system consisting of 3nos. 6.5” (165mm) coated dual cone speakers. Provision given for connecting external speaker, if required.
  • Supplied with a detachable gooseneck condenser microphone and a reading light for the podium top.
  • Contains a built-in VHF wireless diversity receiver. High quality VHF handheld wireless transmitter supplied. (Available in different frequencies).
  • Provision for connecting a wired microphone through a 6.3mm phone jack or a line source through an XLR connector.
  • Handheld wireless transmitter & gooseneck podium microphone have voice priority over all other inputs. This feature can be switched ON or OFF through a slide switch.
  • Built in digital recorder cum MP3 player, which can record on USB pen drives or SD cards.
  • Facility for connecting a stereo auxiliary source through L&R RCA plug. It accepts four different sensitivities of auxiliary signal which are selectable through a slide switch.
  • Seperate output connectors for LINE OUT & REC OUT through mini male XLR & 6.3mm phone socket respectively, allowing the lectern system to be connected to external amplifiers for further amplification, if required.
  • Tonal adjustment can be done through cut-boost type Bass & Treble controls.
  • Rugged & stable floor standing base. Can be fixed to the floor with brackets (provided), if required.
  • Operates on 240V 50Hz mains supply.
  • Some assembly by the customer required.
The Manufacture Company : AHUJA
Country of Origin : INDIA



  • Specifications
  • Downloads

RECEIVER AMPLIFIER

.

Power Output

40 Watts Max.

Speaker Impedance (External)

4W

Input Channels Sensitivity

Mic-1: 3.0mV, Mic-2: 1.8mV, Line: 100mV, Aux Position-1: 100mV, Aux Position-2: 180mV, Aux Position-3: 300mV, Aux Position-4: 700mV

Frequency Response

100-16,000Hz

Tone Control

Bass: ±6dB at 80Hz, Treble: ±6dB at 8kHz

REC. Output

1V (nominal)

Power Supply

AC 220-240V, 50/60Hz

Power Consumption

AC 100W

Dimensions

W420 × H1135 × D580 mm

Weight

18.30kg

HANDHELD wireless TRANSMITTER

.

Microphone

Dynamic Unidirectional

Frequency Stability

±0.005%

Spurious Emissions

45dB (max.)

RF Output Power

15mW (max.)

Frequency Response

50 - 15,000Hz

Dynamic Range

100dB

Battery

9V

Dimensions

Ø55 × L244 mm

Weight

200g (without battery)
