CMD-5200

CONFERENCE SYSTEMS

CM-5000

CMD-5200

Delegate Unit

.

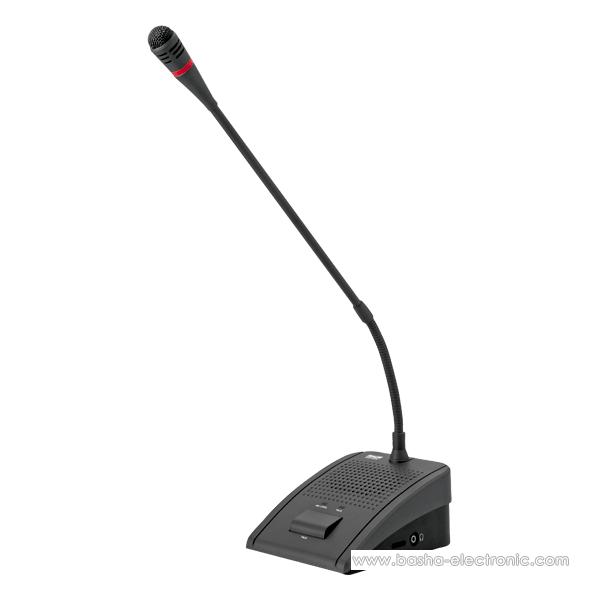

Each unit is provided with a long gooseneck condenser microphone which is highly sensitive and unidirectional. The microphone is provided with a diffused LED housing to provide positive visual identification of the unit in operation. The built-in speaker in each unit provides clear and crisp sound reinforcement. The output level of the speaker can be adjusted through a recessed volume control in the unit. Each unit has a headphone output, TALK switch and a TALK LED. The MIC LEVEL LED in the delegate unit flickers to indicate microphone input signal level.

The Manufacture Company : AHUJA
Country of Origin : INDIA



  • Specifications
  • Downloads

Microphone

-63dBV/µbar (7.5mV/Pa)

Current Consumption

< 50mA Max.

Mic Auto Switch-Off Time

75 seconds approx.

Input

Line

Output

Line, Headphone

Speaker

Max Input 300mW

Controls

Talk Switch, Speaker Volume Control, Headphone Volume Control

Dimensions

W118 × H70 × D160 mm

Weight

1.05 kg (w/o cable)

Accessories

Foam Windshield, 2.5m Interconnecting Cable



Operation Manual | 2018-07-19
